当前位置: 首页>产品>031-5607
031-5607

031-5607

类  型:
连接器
品  牌:
安费诺(Amphenol-RF)
颜  色:
产品描述:

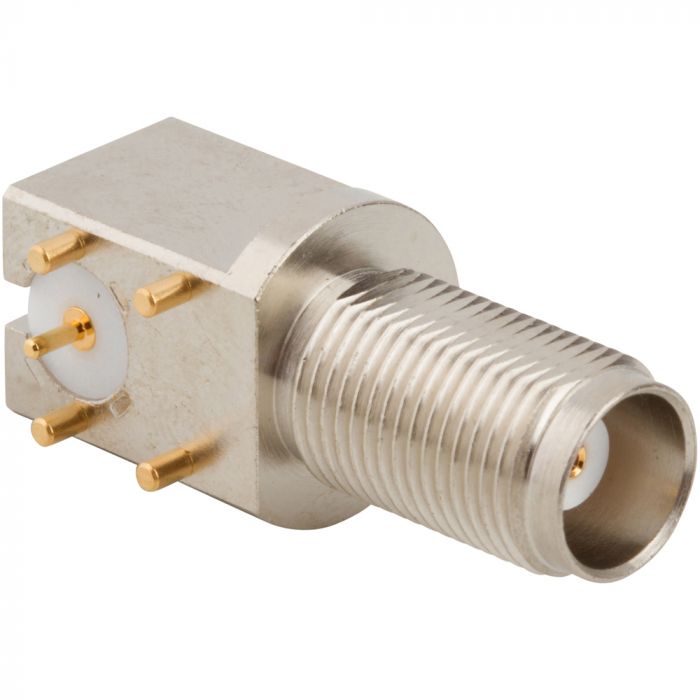

RF Connector TNC Right Angle PCB Jack Through Hole 50 Ohm
TE 031-5607
分类 连接器
类型 连接器
品牌 安费诺(Amphenol-RF)
Body Finish Nickel
描述 RF Connector TNC Right Angle PCB Jack Through Hole 50 Ohm
电路应用 Fakra
Body Material Brass
Cable Type (Terminates to) Not Applicable
Contact Finish Gold
Contact Material Phosphor Bronze
Contact Termination Solder
Coupling Mechanism Threaded
Export Control Classification Number EAR99
Frequency (Max GHz) 11.0
连接器类型 母端
Gender Jack
防水 否
IP Rating Not Rated
Impedance (Ohms) 50
Insulator Material PTFE
Isolated No
Low PIM No
Mil Qualified No
Non Magnetic No
Orientation Right Angle
Panel Mounting Feature Not Applicable
Ports 1 (Single Port)
Size Category Miniature
Temp (Max Degrees Celsius) 85.0
Temp (Min Degrees Celsius) -40.0
Termination Style PCB - Through Hole
Thread Direction Standard
