当前位置: 首页>产品>903-413J-51A

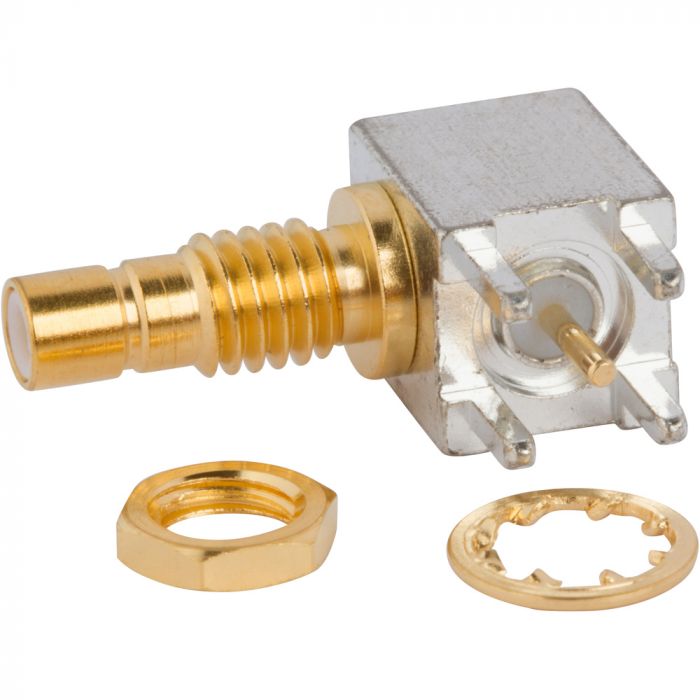

903-413J-51A

903-413J-51A

类  型:
连接器
品  牌:
安费诺(Amphenol-RF)
颜  色:
产品描述:
RF Connector SMB PCB Through Hole Right Angle Jack Bulkhead 50 Ohm
TE 903-413J-51A
分类 连接器
类型 连接器
品牌 安费诺(Amphenol-RF)
Body Finish Gold
描述 RF Connector SMB PCB Through Hole Right Angle Jack Bulkhead 50 Ohm
电路应用 Fakra
Body Material Brass
Cable Type (Terminates to) Not Applicable
Contact Finish Gold
Contact Material Brass
Contact Termination Solder
Coupling Mechanism Push-on
Export Control Classification Number EAR99
连接器类型 母端
Gender Jack
防水 否
IP Rating Not Rated
Impedance (Ohms) 50
Insulator Material PTFE
Isolated No
Low PIM No
Mil Qualified No
Non Magnetic No
Orientation Right Angle
Panel Mounting Feature Bulkhead - Rear Mount
Ports 1 (Single Port)
Size Category Subminiature
Temp (Max Degrees Celsius) 165.0
Temp (Min Degrees Celsius) -65.0
Termination Style PCB - Through Hole
Thread Direction Standard
