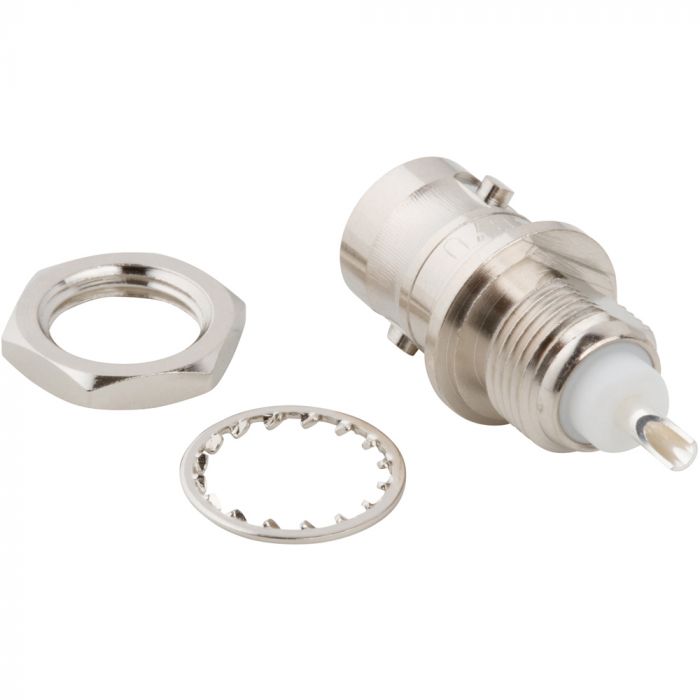

031-236
- 类 型:
- 连接器
- 品 牌:
- 安费诺(Amphenol-RF)
- 颜 色:
- 产品描述:
- UG-625B/U BNC Straight Receptacle Jack Solder Cup Bulkhead Front Mount 50 Ohm
线束工程师服务平台
可以搜到:产品、技术、资料、新闻、检测、企业、视频

| TE | 031-236 |
| 分类 | 连接器 |
| 类型 | 连接器 |
| 品牌 | 安费诺(Amphenol-RF) |
| Body Finish | Nickel |
| 描述 | UG-625B/U BNC Straight Receptacle Jack Solder Cup Bulkhead Front Mount 50 Ohm |
| 电路应用 | Fakra |
| Body Material | Brass |
| Cable Type (Terminates to) | Not Applicable |
| Contact Finish | Silver |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Coupling Mechanism | Bayonet |
| Export Control Classification Number | EAR99 |
| Frequency (Max GHz) | 2.0 |
| 连接器类型 | 母端 |
| Gender | Jack |
| 防水 | 否 |
| IP Rating | Not Rated |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Isolated | No |
| Low PIM | No |
| Mil Qualified | No |
| Non Magnetic | No |
| Orientation | Straight |
| Panel Mounting Feature | Bulkhead - Front Mount |
| Ports | 1 (Single Port) |
| Size Category | Miniature |
| Temp (Max Degrees Celsius) | 165.0 |
| Temp (Min Degrees Celsius) | -65.0 |
| Termination Style | Solder Cup |
| Alias | UG-625B/U |
| Extended Dielectric Length | 0.205 Inches (5.21 mm) |
