000-28100

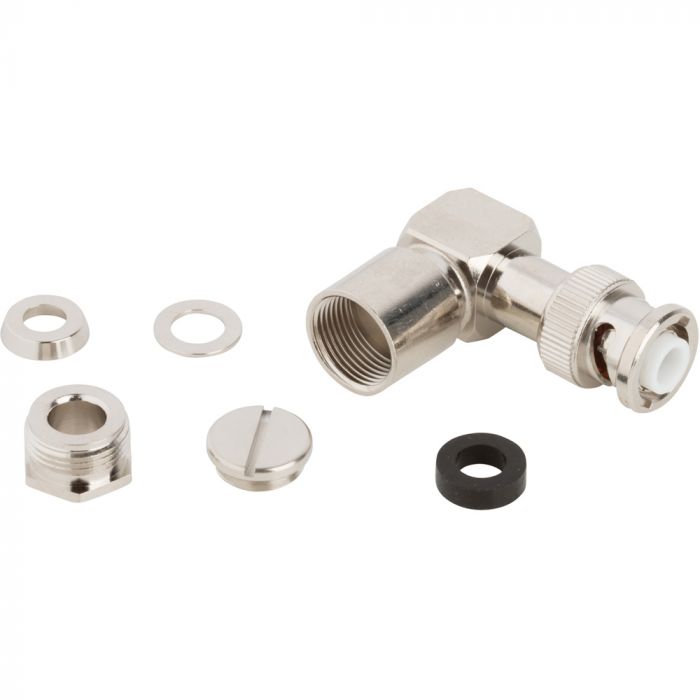

产品描述：: RF Connector MHV Right Angle Clamp Plug RG-59 RG-62 Non-Constant Impedance

TE	000-28100
分类	连接器
类型	连接器
品牌	安费诺(Amphenol-RF)
Body Finish	Nickel
描述	RF Connector MHV Right Angle Clamp Plug RG-59 RG-62 Non-Constant Impedance
电路应用	Fakra
Body Material	Brass
Cable Type (Terminates to)	RG-59, RG-62, Belden 8221, Belden 8241, Belden 9169, Belden 9204, Belden 9228, Canare LV-61S
Contact Finish	Silver
Contact Material	Brass
Contact Termination	Solder
Coupling Mechanism	Bayonet
Export Control Classification Number	EAR99
Frequency (Max GHz)	0.5
连接器类型	公端
Gender	Plug
防水	否
IP Rating	Not Rated
Impedance (Ohms)	Non-Constant
Insulator Material	PTFE
Isolated	No
Low PIM	No
Mil Qualified	No
Non Magnetic	No
Orientation	Right Angle
Panel Mounting Feature	Not Applicable
Ports	1 (Single Port)
Size Category	Subminiature
Temp (Max Degrees Celsius)	165.0
Temp (Min Degrees Celsius)	-65.0
Termination Style	Cable - Clamp
Thread Direction	Standard
Alias	28100
