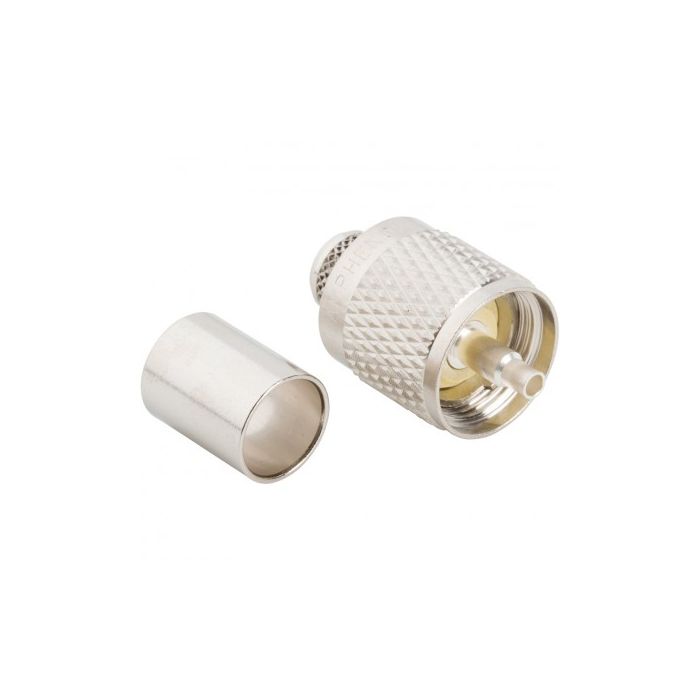

083-8SP-1004

产品描述：: RF Connector UHF Straight Crimp Plug RG-8 RG-213 RG-225 Non-Constant Impedance

TE	083-8SP-1004
分类	连接器
类型	连接器
品牌	安费诺(Amphenol-RF)
Body Finish	Nickel
描述	RF Connector UHF Straight Crimp Plug RG-8 RG-213 RG-225 Non-Constant Impedance
电路应用	Fakra
Body Material	Brass
Cable Type (Terminates to)	RG-8, RG-213, RG-225, Times AA-4478, Belden 7733A, Belden 8267, Belden 9251, Belden 9880, Belden 89880, Belden 8242, Belden 8268
Contact Finish	Silver
Contact Material	Brass
Contact Termination	Solder
Coupling Mechanism	Threaded
Export Control Classification Number	EAR99
Frequency (Max GHz)	0.3
连接器类型	公端
Gender	Plug
防水	否
IP Rating	Not Rated
Impedance (Ohms)	Non-Constant
Insulator Material	Phenolic
Isolated	No
Low PIM	No
Mil Qualified	No
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	Not Applicable
Ports	1 (Single Port)
Size Category	Standard
Temp (Max Degrees Celsius)	165.0
Temp (Min Degrees Celsius)	-65.0
Termination Style	Cable - Crimp
Thread Direction	Standard
