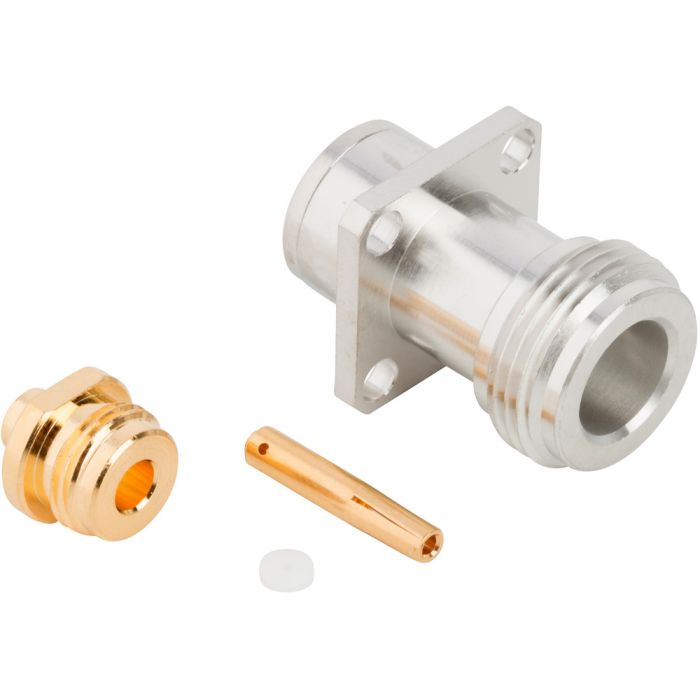

172170-10

产品描述：: RF Connector N-Type Panel Mount 4-Hole Flange Jack Solder RG-402 0.141-inch Conformable Times Tflex 402 50 Ohm

TE	172170-10
分类	连接器
类型	连接器
品牌	安费诺(Amphenol-RF)
Body Finish	White Bronze
描述	RF Connector N-Type Panel Mount 4-Hole Flange Jack Solder RG-402 0.141-inch Conformable Times Tflex 402 50 Ohm
电路应用	Fakra
Body Material	Brass
Cable Type (Terminates to)	0.141-inch Semi-Rigid, 0.141-inch Conformable, RG-402, Times Tflex 402, Belden 1673A
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Termination	Solder
Coupling Mechanism	Threaded
Export Control Classification Number	EAR99
Frequency (Max GHz)	11.0
连接器类型	母端
Gender	Jack
防水	否
IP Rating	Not Rated
Impedance (Ohms)	50
Insulator Material	PTFE
Isolated	No
Low PIM	No
Mil Qualified	No
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	4-Hole Flange
Ports	1 (Single Port)
Size Category	Standard
Temp (Max Degrees Celsius)	85.0
Temp (Min Degrees Celsius)	-40.0
Termination Style	Cable - Solder
Thread Direction	Standard
