| TE | 111-70400 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to LRT230 Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings |
| 描述 | Extended trigger allows for simple and quick release of the ties Eyelet on the head of the ties allows any excess tail to be tucked neatly away Tuck away also protects the trigger from accidental release |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | LRT230-PA66-BK |
| Releasable Closure (Yes/No) | Yes |

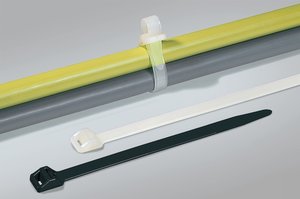

| Short Description | Releasable Cable Tie 230 x7.6 mm, black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 52.0mm |
| Bundle ∅ min. | 16.0mm |
| Length (L) | 230mm |
| Min.Tensile Strength | 535N |
| Thickness (T) | 1.5mm |
| Width (W) | 7.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | IEC 60092 series |
| GTIN-13 / EAN | 5022660311482.0 |
| Packaging 1 - Height (m) | 0.038m |
| Packaging 1 - Length (m) | 0.406m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00313m³ |
| Packaging 1 - Weight (kg) | 0.716001kg |
| Packaging 1 - Width (m) | 0.203m |
