| TE | 115-40902 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to RELF170 Competences Cable holder Accessories |
| 描述 | Simple to install with wings to lock ties firmly in place Releasable and reusable RELF and RI ranges are conventional ’serrated’ cable ties FBR range has a ’ladder-type’ design for a very flexible strap |
| Application Tool | MK6, MK9P, EVO9, EVO9HT |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |

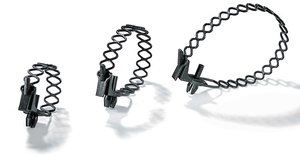

| PART DESCRIPTION | RELF170-PA66HIR-BK |
| Product Group | 1-Piece Fixing Ties with rivet, releasable |
| Releasable Closure (Yes/No) | Yes |
| Short Description | Fixing tie 180x8 mm, high impact modified, black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 44.0mm |
| Bundle ∅ min. | 27.0mm |
| Length (L) | 180mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.2mm |
| Width (W) | 8.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified (PA66HIR) |
| Operating Temperature - °C | -40 °C to +80 °C |
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL OCD link | Link |
| UL-File Number | E64963 |
| GTIN-13 / EAN | 5022660138720.0 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.355m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00522m³ |
| Packaging 1 - Weight (kg) | 0.288001kg |
| Packaging 1 - Width (m) | 0.21m |
