131-60070

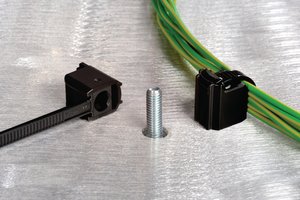

产品描述：: One-piece fixing ties High specification materials Superior design Suitable for complex applications

TE	131-60070
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to LFC155 Competences Cable holder Accessories Similar products
描述	One-piece fixing ties High specification materials Superior design Suitable for complex applications
Application Tool	MK3PNSP2, MK7P, EVO7, EVO7SP, EVO9
Colour	Black (BK)
Identification Plate Position	none
Pack Cont.	560pcs.
Package Quantity per	bag
PART DESCRIPTION	LFC155-PA66-BK
Product Family	LFC-Series for routing close to the stud
Product Group	1-piece fixing ties for weld studs
Releasable Closure (Yes/No)	No
Short Description	1-Piece Fixing Tie for Weld Studs PA66 200x6.0 black
颜色	Black (BK)
Tie Closure	plastic pawl
Variant	Inside Serrated
Bundle ∅ max.	26.0mm
Bundle ∅ min.	6.0mm
Length (L)	163mm
Min.Tensile Strength	160N
Thickness (T)	1.3mm
Width (W)	4.6mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Hazardous good	No
Material	Polyamide 6.6 (PA66)
Operating Temperature - °C	-40 °C to +85 °C
GTIN-13 / EAN	4031026204949.0
Packaging 1 - Height (m)	0.17m
Packaging 1 - Length (m)	0.3m
Packaging 1 - Qty	560.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.01199m³
Packaging 1 - Weight (kg)	0.968801kg
Packaging 1 - Width (m)	0.235m
