155-34202

产品描述：: One-piece fixing ties High specification materials Superior design Suitable for complex applications

TE	155-34202
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to LFC165 Competences Cable holder Accessories Similar products
描述	One-piece fixing ties High specification materials Superior design Suitable for complex applications
Application Tool	MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour	Black (BK)
Identification Plate Position	none
Pack Cont.	1000pcs.
Package Quantity per	bag
PART DESCRIPTION	LFC165-PA66HS-BK
Product Family	LFC-Series for routing close to the stud
Product Group	1-piece fixing ties for weld studs
Releasable Closure (Yes/No)	No

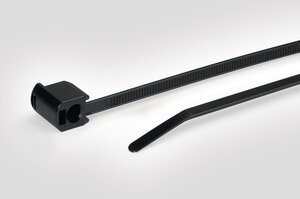

Short Description	Fixing Tie 165x4.7 black
颜色	Black (BK)
Tie Closure	plastic pawl
Bundle ∅ max.	35.0mm
Bundle ∅ min.	3.0mm
Length (L)	165mm
Min.Tensile Strength	90N
Thickness (T)	1.35mm
Width (W)	4.7mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Hazardous good	No
Material	Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C	-40 °C to +105 °C, (+145 °C, 500 h)
GTIN-13 / EAN	4031026217406.0
Packaging 1 - Height (m)	0.2m
Packaging 1 - Length (m)	0.47m
Packaging 1 - Qty	1000.0
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.05123m³
Packaging 1 - Weight (kg)	2.141001kg
Packaging 1 - Width (m)	0.545m
