157-00210

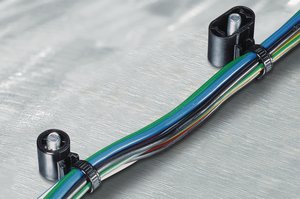

产品描述：: Cable tie head always situated in defined position Easy to install without the need for a tool Bundles are routed very close to stud

TE	157-00210
分类	紧固件
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50SOSSBS5E Competences Cable holder Accessories Similar products
描述	Cable tie head always situated in defined position Easy to install without the need for a tool Bundles are routed very close to stud
Application Tool	MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour	Black (BK)
Identification Plate Position	none
Pack Cont.	500pcs.
Package Quantity per	bag
PART DESCRIPTION	T50SOSSBS5E-PA66HS-BK
Product Family	T50SOSSBS5E for cable routing alongside the stud
Product Group	1-piece fixing ties for weld studs
Releasable Closure (Yes/No)	No
颜色	Black (BK)
Tie Closure	plastic pawl
Variant	Outside Serrated
Bundle ∅ max.	35.0mm
Bundle ∅ min.	1.0mm
Length (L)	160.0mm
Min.Tensile Strength	225N
Thickness (T)	1.35mm
Width (W)	4.7mm
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Hazardous good	No
Material	Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C	-40 °C to +105 °C
GTIN-13 / EAN	4031026491271.0
Packaging 1 - Qty	500.0
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	0.4kg
