| TE | 157-00021 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to SBT120-M12 Competences Cable holder Similar products |

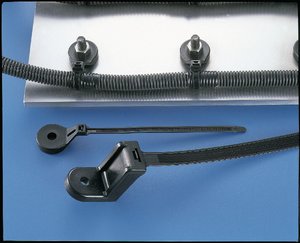

| 描述 | One-piece fixing ties High specification materials Superior design Suitable for complex applications Cable Tie head always situated in defined position Easy to install without the need for a tool Bundles are routed very close to stud |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 25pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | SBT120-M12-PA66HSUV-BK |
| Product Family | For cable routing alongside the stud |
| Product Group | 1-piece fixing ties for weld studs |
| Releasable Closure (Yes/No) | Yes |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Bundle ∅ max. | 60.0mm |
| Bundle ∅ min. | 5.0mm |
| Length (L) | 300.0mm |
| Min.Tensile Strength | 533.4N |
| Thickness (T) | 1.4mm |
| Width (W) | 13.0mm |
| Flammability | UL 94 V2 |
| Material | Polyamide 6.6, heat and UV-stabilised (PA66HSUV) |
| Operating Temperature - °C | -40 °C to +110 °C |
| GTIN-13 / EAN | 4944387931082.0 |
