| TE | 157-00206 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to LFC165-2 Competences Cable holder Accessories Similar products |

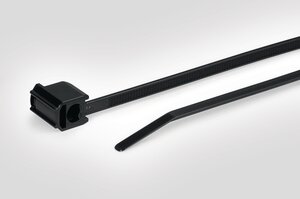

| 描述 | 1-piece fixing tie for 5 mm studs Cable tie head always situated in defined position Easy to install without the need for a tool Bundle runs very close next to stud Closed stud retainer protects the bundle against damage Contact surface allows secure bundling with tensioning tool |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | LFC165-2-PA66HS-BK |
| Product Family | LFC-Series for routing close to the stud |
| Product Group | 1-piece fixing ties for weld studs |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 3.0mm |
| Length (L) | 165mm |
| Min.Tensile Strength | 150N |
| Thickness (T) | 1.35mm |
| Width (W) | 4.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 4031026491233.0 |
| Packaging 1 - Height (m) | 0.08m |
| Packaging 1 - Length (m) | 0.37m |
| Packaging 1 - Qty | 500.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00844m³ |
| Packaging 1 - Weight (kg) | 1.125001kg |
| Packaging 1 - Width (m) | 0.285m |
