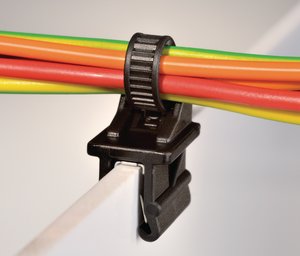

| TE | 126-00342 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50SOSEC1.0-3.0SV-E Competences Cable holder Similar products |
| 描述 | Easy assembly, just clip on per hand For edges of 1 - 3 mm, 3 - 6 mm, 4 - 6 mm or 6 - 8 mm Integrated metal clamp holds clip firmly in place Clamp consists of double tempered steel spring Ideal for applications where holes or adhesives are not suitable |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 3000pcs. |
| Package Quantity per | carton |
| PART DESCRIPTION | T50SOSEC1.0-3.0SV-E-PA66HIRHS-BK |
| Product Family | EdgeClip-Series |
| Product Group | 1-piece fixing ties for edges |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Bundle ∅ max. | 35mm |
| Bundle ∅ min. | 1mm |
| Length (L) | 159mm |
| Min.Tensile Strength | 150N |
| Thickness (T) | 1.35mm |
| Width (W) | 15mm |
| Flammability | UL 94 V2 |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+145 °C, 500 h) |
| GTIN-13 / EAN | 4031026608914.0 |
