| TE | 151-02349 |
| 分类 | 紧固件 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to FSA3.0 Competences Cable holder Ratchet P-Clamp for mounting cables and hoses Accessories Similar products |

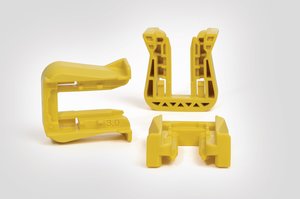

| 描述 | Color coding for panel thickness: red (2.5 mm), yellow (3.0 mm), grey (1.5 mm and 3.5mm), natural (1.0 mm and 1.5 mm) Panel thickness is marked on the slider Permanent fixation of the connectors in the mounting hole by using the slider These parts are also available in V0 material (flame retardent) e.g. for public transport Fixing slider fit for the Aptiv connector XS and SP series |
| Colour | Yellow (YE) |
| Pack Cont. | 2200pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | FSA3.0-PBTGF30-YE |
| Product Family | Fixing Slider A, 3.0 mm CTCS-series |
| Product Group | Connector Accessory Fixing Slider, Group A |
| 颜色 | Yellow (YE) |
| Length (L) | 32.0mm |
| Width (W) | 30.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous good | No |
| Material | Polybutylene Terephthalate glass-fibre reinforced (PBTGF30%) |
| GTIN-13 / EAN | 4031026606385.0 |
| Packaging 1 - Height (m) | 0.8m |
| Packaging 1 - Length (m) | 0.6m |
| Packaging 1 - Qty | 2200.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.192m³ |
| Packaging 1 - Weight (kg) | 11.287611kg |
| Packaging 1 - Width (m) | 0.4m |
