| TE |

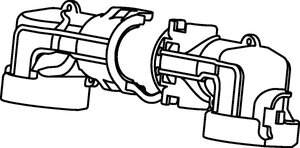

151-02788 |
| 分类 |
紧固件 |
| 品牌 |
海尔曼太通全球(HellermannTyton) |
| 类型 |
Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to BSB90NW10 Competences Cable holder Ratchet P-Clamp for mounting cables and hoses Accessories Similar products |
| 描述 |
Strain relief for corrugated tubes Four shrouded locks Strapping points fully integrated with cover for maximum retention of harness Nominal diameter printed in backshell Insertion support and pre-catch function audible by clicking simplify the closing, laying of the cables and saves time Corrugated tube is completely enclosed by backshell, so that tube is not bruised in case of using an additional cable tie and cannot slip out of place especially during movement and vibration Available in V0-ma |
| Colour |
Black (BK) |
| Pack Cont. |
800pcs. |
| Package Quantity per |
bag |
| PART DESCRIPTION |
BSB90NW10-PA66/PA6FR-BK |
| Product Family |
Backshell B, 90° elbow, NW 10 CTCS-series |
| Product Group |
Connector Accessory Backshells, Group B |
| 颜色 |
Black (BK) |
| Length (L) |
44.35mm |
| Width (W) |
26.7mm |
| ELV compliant (Article 4 - 2) |
YES |
| Hazardous good |
No |
| Material |
Polyamide 6.6 (PA66), Polyamide 6, flame retardant (PA6FR) |
| GTIN-13 / EAN |
4031026617978.0 |
| Packaging 1 - Height (m) |
0.8m |
| Packaging 1 - Length (m) |
0.6m |
| Packaging 1 - Qty |
800.0 |
| Packaging 1 - Type |
bag |
| Packaging 1 - Volume (m³) |
0.192m³ |
| Packaging 1 - Weight (kg) |
5.273411kg |
| Packaging 1 - Width (m) |
0.4m |
