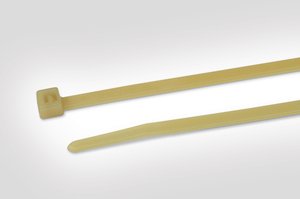

| TE | 114-05679 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50L Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |
| 描述 | Available in a wide range of materials and sizes High tensile strength with very low insertion force Only high quality plastic is used meeting recycling targets Inside serrated cable ties for a strong hold onto bundles Ergonomic bent tail offers quick and simple installation Easy application either manually or with an application tool |
| Application Tool | MK3PNSP2, EVOcut, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9 |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50L-PA46-NA |
| Product Family | T-Series in PA46 |
| Product Group | Cable Ties for temperatures up to + 195 °C (500 h) in Polyamide 4.6 |
| Releasable Closure (Yes/No) | No |
| 颜色 | Natural (NA) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 105mm |
| Bundle ∅ min. | 2.5mm |
| Length (L) | 383mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.5mm |
| Width (W) | 4.8mm |
| Flammability | UL 94 V2 |
| Material | Polyamide 4.6 (PA46) |
| Operating Temperature - °C | -40 °C to +130 °C |
| Specifications | ANSI/UL 1565, ANSI/UL 62275 |
| UL OCD link | Link |
| UL-File Number | E64962 |
| GTIN-13 / EAN | 4944387138429.0 |
