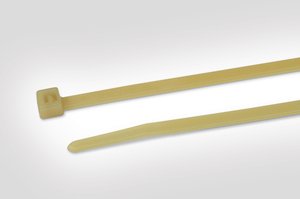

| TE | 114-03079 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T30R Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |
| 描述 | Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h) Available in different sizes to cover various bundle diameters Low smoke generation in the event of a fire PA46 is a moisture sensitive material Inside serrated cable tie offers strong hold around bundles Easy application either manually or with an application tool Operating temperature (long-term) up to +130 °C |
| Application Tool | MK3PNSP2, MK3SP, EVOcut, MK20, EVO7 |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | T30R-PA46-NA |
| Product Family | T-Series in PA46 |
| Product Group | Cable Ties for temperatures up to + 195 °C (500 h) in Polyamide 4.6 |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 150x3.5 PA46-natural |
| 颜色 | Natural (NA) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 150mm |
| Min.Tensile Strength | 135N |
| Thickness (T) | 1.2mm |
| Width (W) | 3.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 4.6 (PA46) |
| Operating Temperature - °C | -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h) |
| Specifications | ANSI/UL 1565, ANSI/UL 62275, EN 62275 |
| UL OCD link | Link |
| UL-File Number | E85319 |
| GTIN-13 / EAN | 4031026198460.0 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 0.25m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0007m³ |
| Packaging 1 - Weight (kg) | 0.076301kg |
| Packaging 1 - Width (m) | 0.14m |
| Packaging 2 - Height (m) | 0.188m |
| Packaging 2 - Length (m) | 0.136m |
| Packaging 2 - Qty | 3000.0 |
| Packaging 2 - Type | carton |
| Packaging 2 - Volume (m³) | 0.0096m³ |
| Packaging 2 - Weight (kg) | 2.42903kg |
| Packaging 2 - Width (m) | 0.377m |
