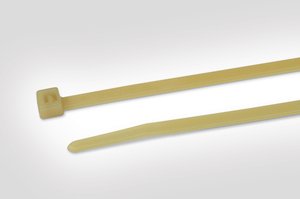

111-00960

产品描述：: Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h) Available in different sizes to cover various bundle diameters Low smoke generation in the event of a fire PA46 is a moisture sensitive material Inside serrated cable tie offers strong hold around bundles Easy application either manually or with an application tool

TE	111-00960
分类	扎带
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T18R Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products
描述	Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h) Available in different sizes to cover various bundle diameters Low smoke generation in the event of a fire PA46 is a moisture sensitive material Inside serrated cable tie offers strong hold around bundles Easy application either manually or with an application tool
Application Tool	MK3PNSP2, EVOcut, MK20, EVO7
Colour	Natural (NA)
Identification Plate Position	none
Pack Cont.	1000pcs.
Package Quantity per	bag
PART DESCRIPTION	T18R-PA46-NA
Product Family	T-Series in PA46
Product Group	Cable Ties for temperatures up to + 150 °C in Polyamide 4.6
Releasable Closure (Yes/No)	No
颜色	Natural (NA)
Tie Closure	plastic pawl
Variant	Inside Serrated
Bundle ∅ max.	22mm
Bundle ∅ min.	1.5mm
Length (L)	100.0mm
Min.Tensile Strength	80N
Thickness (T)	1.0
Width (W)	2.5mm
Flammability	UL 94 V2
Material	Polyamide 4.6 (PA46)
Operating Temperature - °C	-40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
Specifications	IEC 62275:2006
GTIN-13 / EAN	4031026512754.0
Packaging 1 - Weight (kg)	13.10kg
