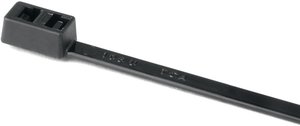

| TE | 117-05400 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50LDH Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |
| 描述 | Possibility to separate bundles with only one cable tie Cable tie with two heads creating an inside and outside serrated loop Available in a wide range of materials Bundles can be of different diameter Maximum bundle diameter is a maximum combined bundle Easy application either manually or with a processing tool |
| Application Tool | MK3PNSP2, MK7P, MK20, EVO7 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50LDH-PA66-BK |
| Product Family | DH-Series |
| Product Group | Cable ties for parallel routing |
| Releasable Closure (Yes/No) | No |
| Short Description | 15.5", double head cable tie, black, 100/bag |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 101.6mm |
| Bundle ∅ min. | 1.6mm |
| Length (L) | 395.0mm |
| Min.Tensile Strength | 225.0N |
| Thickness (T) | 1.4mm |
| Width (W) | 4.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | UL-ZODZ2.E64139 |
| UL-File Number | E64139 |
| GTIN-13 / EAN | 5016371005976.0 |
| Packaging 1 - Length (m) | 0.177m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 0.286001kg |
| Packaging 1 - Width (m) | 0.254m |
