| TE | 131-22510 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to REL250 Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Similar products |
| 描述 | Releasable and reusable cable tie for medium-weight loads Extremely easy-to-operate release mechanism Opens simply and quickly with only one hand Also available in PA66W for outdoor applications REL cable ties have their serration on the inside |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | REL250-PA66-BK |
| Product Family | REL-Series |
| Product Group | Cable ties inside serrated with kickdown lever |
| Releasable Closure (Yes/No) | Yes |

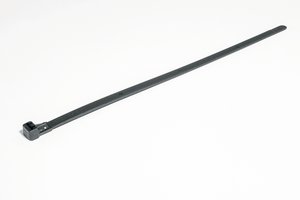

| Short Description | Releasable Cable Tie 250x7.6 mm, black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 68.0mm |
| Bundle ∅ min. | 16.0mm |
| Length (L) | 250mm |
| Min.Tensile Strength | 200N |
| Thickness (T) | 1.2mm |
| Width (W) | 7.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | CAN/CSA-C22.2 no. 62275 |
| UL OCD link | Link |
| UL Type | 11.0 |
| UL-File Number | E64963 |
| GTIN-13 / EAN | 5022660019326.0 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.406m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0033m³ |
| Packaging 1 - Weight (kg) | 0.260001kg |
| Packaging 1 - Width (m) | 0.203m |
