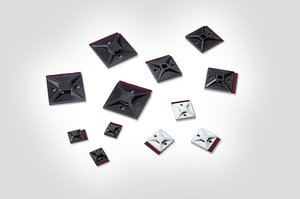

| TE | 151-01557 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to MB3APT-I Competences Self-Adhesive cable tie mounts Similar products |
| 描述 | MB mounts with homogeneous system of acrylic adhesive Very good initial adhesion, increases with time Innovative fixing solution for high and low energy surfaces Protection foil with finger lift for easy peel off |
| Colour | Black (BK) |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | MB3APT-I-PA66-BK |
| Product Family | SolidTack-Series MB |
| Product Group | Cable tie mounts with high performance adhesive |
| Short Description | Fixing Parts with special adhesive 19x19 black |
| 颜色 | Black (BK) |
| Length (L) | 19.0mm |
| Width (W) | 19.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 (excluding adhesive) |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 4031026550329.0 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.12m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00127m³ |
| Packaging 1 - Weight (kg) | 0.10991kg |
| Packaging 1 - Width (m) | 0.265m |
