| TE | 111-02390 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50R Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |
| 描述 | Available in a wide range of materials and sizes High tensile strength with very low insertion force Only high quality plastic is used meeting recycling targets Inside serrated cable ties for a strong hold onto bundles Ergonomic bent tail offers quick and simple installation Easy application either manually or with an application tool |
| Application Tool | MK3PNSP2, EVOcut, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9 |
| Colour | Grey (GY) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |

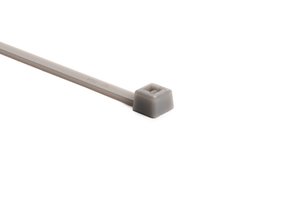

| PART DESCRIPTION | T50R-PVDF-GY |
| Product Family | T-50R in PVDF, grey |
| Product Group | Cable Ties inside serrated |
| Releasable Closure (Yes/No) | No |
| 颜色 | Grey (GY) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 50.0mm |
| Bundle ∅ min. | 8.0mm |
| Length (L) | 200.0mm |
| Min.Tensile Strength | 225.0N |
| Thickness (T) | 1.2mm |
| Width (W) | 4.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V0 |
| Hazardous good | No |
| Material | Polyvinylidene Fluoride (PVDF) |
| Operating Temperature - °C | -40 °C to +140 °C |
| GTIN-13 / EAN | 4031026671819.0 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.365m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0014m³ |
| Packaging 1 - Weight (kg) | 0.273001kg |
| Packaging 1 - Width (m) | 0.153m |
