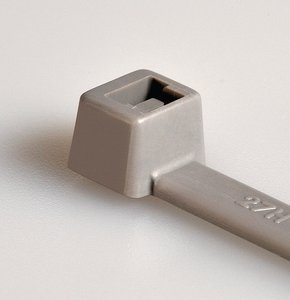

| TE | 111-01617 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T18R Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |
| 描述 | Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h) Available in different sizes to cover various bundle diameters Low smoke generation in the event of a fire PA46 is a moisture sensitive material Inside serrated cable tie offers strong hold around bundles Easy application either manually or with an application tool |
| Application Tool | MK3PNSP2, EVOcut, MK20, EVO7 |
| Colour | Grey (GY) |
| Identification Plate Position | none |
| Pack Cont. | 1000pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T18R-PA46-GY |
| Product Family | T-Series in PA46 |
| Product Group | Cable Ties for temperatures up to + 150 °C in Polyamide 4.6 |
| Releasable Closure (Yes/No) | No |
| 颜色 | Grey (GY) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 22mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 100.0mm |
| Min.Tensile Strength | 80N |
| Thickness (T) | 1.0mm |
| Width (W) | 2.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 4.6 (PA46) |
| Operating Temperature - °C | -40 °C to +150 °C |
| GTIN-13 / EAN | 4031026482682.0 |
| Packaging 1 - Height (m) | 0.039m |
| Packaging 1 - Length (m) | 0.18m |
| Packaging 1 - Qty | 1000.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00098m³ |
| Packaging 1 - Weight (kg) | 0.300001kg |
| Packaging 1 - Width (m) | 0.14m |
