| TE | 109-00185 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to Q50R Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories Similar products |
| 描述 | Open lock head for quick and easy insertion Integrated pre-locking function More than 25 % faster in application Inside serration for a strong hold around bundles Easy application either manually or with a processing tool |
| Application Tool | MK3PNSP2, EVOcut, MK7P, MK9P, MK9P w/ Upper air, MK20, MK21, EVO7, EVO7SP, EVO9, MK9SST |
| Colour | Yellow (YE) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | Q50R-PA66-YE |
| Product Family | Q-ties |
| Product Group | Cable Ties with open head |
| Releasable Closure (Yes/No) | No |

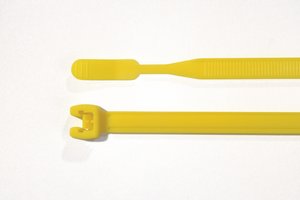

| Short Description | Cable Tie with open head 210x4.7 yellow |
| 颜色 | Yellow (YE) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 50.0mm |
| Bundle ∅ min. | 3.0mm |
| Length (L) | 210mm |
| Min.Tensile Strength | 220N |
| Thickness (T) | 1.5mm |
| Width (W) | 4.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 4031026413136.0 |
| Packaging 1 - Height (m) | 0.015m |
| Packaging 1 - Length (m) | 0.325m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00078m³ |
| Packaging 1 - Weight (kg) | 0.130001kg |
| Packaging 1 - Width (m) | 0.16m |
