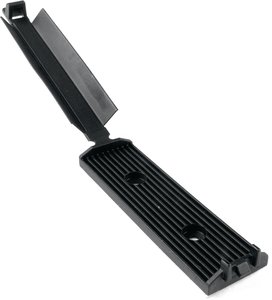

| TE | 151-01562 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to FKH50APT-I Competences Self-Adhesive cable tie mounts Similar products |
| 描述 | Mount especially developed to hold and guide flat ribbon cables FKH mounts with homogeneous system of acrylic adhesive Very good initial adhesion, increases with time Adhesive with high cohesive strength combined with good weathering resistance Innovative fixing solution for high and low energy surfaces Protection foil with finger lift for easy peel off |
| Colour | Black (BK) |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | FKH50APT-I-PA66HIR-BK |
| Product Family | SolidTack-Series FKH, high performance adhesive |
| Product Group | Cable Tie Mounts with high performance adhesive |
| Short Description | Flat Ribbon Cables Self Adhesive / Screw Fixing 56,5x25 mm black |
| 颜色 | Black (BK) |
| Length (L) | 56.5mm |
| Width (W) | 25.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB (excluding adhesive) |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified (PA66HIR) |
| Operating Temperature - °C | -40 °C to +80 °C |
| GTIN-13 / EAN | 4031026550374.0 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.018m³ |
| Packaging 1 - Weight (kg) | 0.787393kg |
| Packaging 1 - Width (m) | 0.3m |
