| TE | 111-01250 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T18R Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories |
| 描述 | Heat stabilised cable ties (PA66HS) for temperatures up to +105 °C Available in a wide range of sizes to cover almost every application Inside serration provides a strong hold onto bundles Manual and/or pneumatic tools available for greater process reliability Commonly offered in natural and black, other colours available on request |
| Application Tool | MK3PNSP2, EVOcut, MK20, EVO7 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 1000pcs. |
| Package Quantity per | bag |

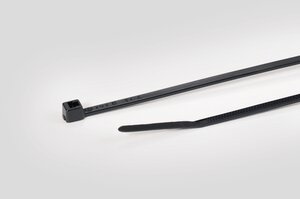

| PART DESCRIPTION | T18R-PA66HS-BK |
| Product Group | Cable ties for temperatures up to + 105°C (heat stabilised) |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 22.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 101.6mm |
| Min.Tensile Strength | 80N |
| Thickness (T) | 1.0mm |
| Width (W) | 2.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| Specifications | ANSI/UL 1565, ANSI/UL 62275, EN 62275, IEC 62275:2006, NSA935401 |
| UL OCD link | Link |
| UL-File Number | E85319 |
| GTIN-13 / EAN | 4031026407425.0 |
| Packaging 1 - Height (m) | 0.014m |
| Packaging 1 - Length (m) | 0.14m |
| Packaging 1 - Qty | 1000.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00013m³ |
| Packaging 1 - Weight (kg) | 0.300001kg |
| Packaging 1 - Width (m) | 0.065m |
