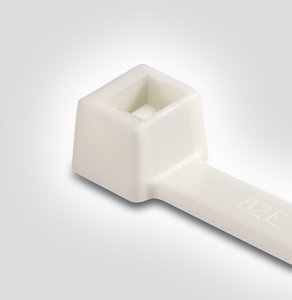

| TE | 111-05438 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50L Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories Similar products |
| 描述 | Available in a wide range of materials and sizes High tensile strength with very low insertion force Only high quality plastic is used meeting recycling targets Inside serrated cable ties for a strong hold onto bundles Ergonomic bent tail offers quick and simple installation Easy application either manually or with an application tool |
| Application Tool | MK3PNSP2, EVOcut, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9 |
| Colour | White (WH) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50L-PA66V0-WH |
| Product Family | T-Series in PA66V0 |
| Product Group | Cable Ties for higher fire-protection |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable tie 390x4.6 mm white |
| 颜色 | White (WH) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 110.0mm |
| Bundle ∅ min. | 3.0mm |
| Length (L) | 390mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.4mm |
| Width (W) | 4.7mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V0 |
| Hazardous good | No |
| Material | Polyamide 6.6 V0 (PA66V0) |
| Operating Temperature - °C | -40 °C to +85 °C, (+105 °C, 500 h) |
| Specifications | ANSI/UL 62275, DIN EN 45545-2 |
| UL-File Number | E64963 |
| GTIN-13 / EAN | 5022660121982.0 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.508m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00309m³ |
| Packaging 1 - Weight (kg) | 0.270001kg |
| Packaging 1 - Width (m) | 0.152m |
