| TE | 112-03019 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T30R Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |
| 描述 | Available in a wide range of materials and sizes High tensile strength with very low insertion force Only high quality plastic is used meeting recycling targets Inside serrated cable ties for a strong hold onto bundles Ergonomic bent tail offers quick and simple installation Easy application either manually or with an application tool |
| Application Tool | MK3PNSP2, MK3SP, EVOcut, MK20, EVO7 |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T30R-PA66-NA |
| Product Family | T-Series in PA66 natural |
| Product Group | Cable Ties Polyamide 6.6 standard |
| Releasable Closure (Yes/No) | No |

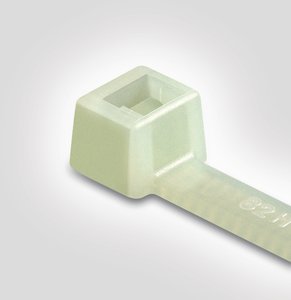

| Short Description | Cable Tie 150x3.5 mm natural |
| 颜色 | Natural (NA) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 148.0mm |
| Min.Tensile Strength | 135.0N |
| Thickness (T) | 1.2mm |
| Width (W) | 3.6mm |
| Designation as per VG-Norm | VG 95387 T04 A 107 A |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Nato number | 5975-12-389-0044 |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | CAGE Code 53421, IEC 62275:2006, VG 95387 Part 4 Edition: 2008-12 |
| UL OCD link | Link |
| UL-File Number | E64139 |
| GTIN-13 / EAN | 4031026107998.0 |
| Packaging 1 - Height (m) | 0.017m |
| Packaging 1 - Length (m) | 0.19m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00032m³ |
| Packaging 1 - Weight (kg) | 0.070001kg |
| Packaging 1 - Width (m) | 0.1m |
