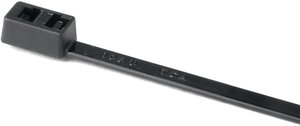

117-05011

产品描述：: Possibility to separate bundles with only one cable tie Cable tie with two heads creating an inside and outside serrated loop Available in a wide range of materials Bundles can be of different diameter Maximum bundle diameter is a maximum combined bundle Easy application either manually or with a processing tool

TE	117-05011
分类	扎带
品牌	海尔曼太通全球(HellermannTyton)
类型	Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50RDH Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories Similar products
描述	Possibility to separate bundles with only one cable tie Cable tie with two heads creating an inside and outside serrated loop Available in a wide range of materials Bundles can be of different diameter Maximum bundle diameter is a maximum combined bundle Easy application either manually or with a processing tool
Application Tool	MK3PNSP2, MK7P, MK20, EVO7
Colour	Black (BK)
Identification Plate Position	none
Pack Cont.	100pcs.
Package Quantity per	bag
PART DESCRIPTION	T50RDH-PA66W-BK
Product Family	DH-Series
Product Group	Cable ties for parallel routing
Releasable Closure (Yes/No)	No
颜色	Black (BK)
Tie Closure	plastic pawl
Variant	Inside Serrated
Bundle ∅ max.	38.0mm
Bundle ∅ min.	1.6mm
Length (L)	210.82mm
Min.Tensile Strength	225.0N
Thickness (T)	1.4mm
Width (W)	4.7mm
Flammability	UL 94 V2
Halogenfree	Yes
Material	Polyamide 6.6, UV-resistant (PA66W)
Operating Temperature - °C	-40 °C to +85 °C
Specifications	UL
UL-File Number	E64139
GTIN-13 / EAN	4031026422299.0
