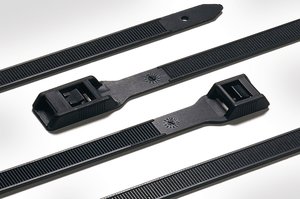

| TE | 112-35060 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to RPE350 Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Similar products |
| 描述 | A releasable cable tie that can be re-opened and re-used Outside serrated cable tie with smooth surface to the bundle Broad contact area with cable, minimising risk of damage Low profile head for use in restricted area Parallel entry for enhanced fit around circular bundles |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | RPE350-PA66HSW-BK |
| Product Family | RPE-Series releasable |
| Product Group | Cable ties with low profile head |
| Releasable Closure (Yes/No) | Yes |
| Short Description | Low Profile Head Cable Tie 350x9.0 mm, heat stabilised, UV-black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 92.0mm |
| Bundle ∅ min. | 25.0mm |
| Length (L) | 350mm |
| Min.Tensile Strength | 445N |
| Thickness (T) | 1.7mm |
| Width (W) | 9.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat and UV-resistant (PA66HSW) |
| Operating Temperature - °C | -40 °C to +105 °C |
| GTIN-13 / EAN | 5022660315770.0 |
| Packaging 1 - Height (m) | 0.055m |
| Packaging 1 - Length (m) | 0.394m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00423m³ |
| Packaging 1 - Weight (kg) | 0.620001kg |
| Packaging 1 - Width (m) | 0.195m |
