| TE | 111-01315 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to MBT49UHD Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |

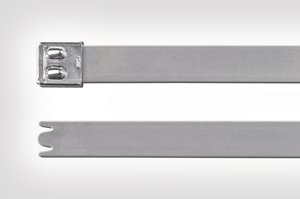

| 描述 | Stainless steel MBT ties with double wrap operation Wraps around the bundle and passes through the head twice Very high tensile strength to carry enormous applied loads Head with two locking balls Resistant to arduous conditions and environments |
| Application Tool | HDT16, MK9SST |
| Colour | Metal (ML) |
| Identification Plate Position | none |
| Pack Cont. | 25pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | MBT49UHD-SS316-ML |
| Product Family | MBTXHD- / MBTUHD-Series, stainless steel 316 |
| Product Group | Double wrap cable ties with ball-lock |
| Releasable Closure (Yes/No) | No |
| Short Description | Double Wrap Metal Cable Ties with Ball-Lock 1245x16.0 mm |
| 颜色 | Metal (ML) |
| Tie Closure | ball bearing lock |
| Variant | No Serration |
| Bundle ∅ max. | 180mm |
| Bundle ∅ min. | 25mm |
| Length (L) | 1245mm |
| Min.Tensile Strength | 7000N |
| Thickness (T) | 0.27mm |
| Width (W) | 16.0mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | non-burning |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Stainless Steel (SS316) |
| Operating Temperature - °C | -80 °C to +538 °C |
| GTIN-13 / EAN | 5022660339653.0 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.153m |
| Packaging 1 - Qty | 25.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00034m³ |
| Packaging 1 - Weight (kg) | 1.197501kg |
| Packaging 1 - Width (m) | 0.088m |
