| TE | 111-00300 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to MBT20XHFC Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |
| 描述 | Fully coated MBT, made from type 316 stainless steel with polyester coating Non-releasable locking feature Coated cable tie with smooth edges Comfortable handling and installation Eliminates contact corrosion between dissimilar materials during application |
| Application Tool | KST-STG200, HDT16, MK9SST, MK9PSST |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 50pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | MBT20XHFC-SP/SS316-BK |
| Product Family | MBT-FC-Series |
| Product Group | Cable Ties with Ball-Lock and Coating |
| Releasable Closure (Yes/No) | No |

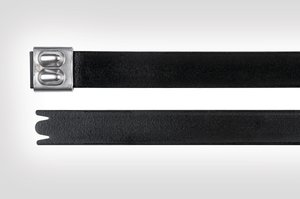

| Short Description | Metal Cable Tie with Ball-Lock and Coating 521x12.3 mm black |
| 颜色 | Black (BK) |
| Tie Closure | ball bearing lock |
| Variant | No Serration |
| Bundle ∅ max. | 152mm |
| Bundle ∅ min. | 17mm |
| Length (L) | 521mm |
| Min.Tensile Strength | 1620N |
| Thickness (T) | 0.38mm |
| Width (W) | 12.3mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | non-burning (except coating) |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyester (SP), Stainless Steel (SS316) |
| Operating Temperature - °C | -80 °C to +538 °C |
| GTIN-13 / EAN | 5022660312281.0 |
| Packaging 1 - Height (m) | 0.055m |
| Packaging 1 - Length (m) | 0.548m |
| Packaging 1 - Qty | 50.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00235m³ |
| Packaging 1 - Weight (kg) | 0.875001kg |
| Packaging 1 - Width (m) | 0.078m |
