| TE | 111-01504 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to MBT49XHFC Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories Similar products |
| 描述 | Fully coated MBT, made from type 316 stainless steel with polyester coating Non-releasable locking feature Coated cable tie with smooth edges Comfortable handling and installation Eliminates contact corrosion between dissimilar materials during application |
| Application Tool | KST-STG200, HDT16, MK9SST, MK9PSST |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 25pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | MBT49XHFC-SP/SS316-BK |
| Product Family | MBT-FC-Series, stainless steel 316 |
| Product Group | Cable ties with ball-lock and coating |
| Releasable Closure (Yes/No) | No |

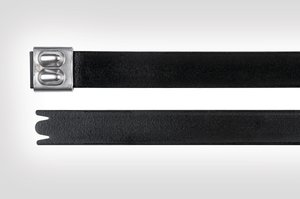

| Short Description | Stainless Steel Cable Tie with Ball-Lock and Coating 1245x12.3 mm, black |
| 颜色 | Black (BK) |
| Tie Closure | ball bearing lock |
| Variant | No Serration |
| Bundle ∅ max. | 380mm |
| Bundle ∅ min. | 17mm |
| Length (L) | 1245mm |
| Min.Tensile Strength | 1620N |
| Thickness (T) | 0.38mm |
| Width (W) | 12.3mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | non-burning (except coating) |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyester (SP), Stainless Steel (SS316) |
| Operating Temperature - °C | -80 °C to +538 °C |
| GTIN-13 / EAN | 5022660341571.0 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.153m |
| Packaging 1 - Qty | 25.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00034m³ |
| Packaging 1 - Weight (kg) | 0.970001kg |
| Packaging 1 - Width (m) | 0.088m |
