| TE | 111-01522 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to MBT33UHDFC Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories Similar products |
| 描述 | MBT cable ties, made from stainless steel SS316 with a polyester coating Non-releasable locking feature Double wrap operation Corrosion resistant Weather resistant Outstanding chemical resistance High temperature resistant Non-burning |
| Application Tool | HDT16, MK9SST |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 50pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | MBT33UHDFC-SS316/SP-BK |
| Product Family | MBTXHDFC- / MBTUHDFC-Series, stainless steel 316 |
| Product Group | Double wrap cable ties with ball-lock and coating |
| Releasable Closure (Yes/No) | No |

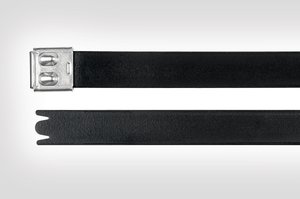

| Short Description | Stainless Steel Cable Tie 838x16 mm, black |
| 颜色 | Black (BK) |
| Tie Closure | ball bearing lock |
| Variant | No Serration |
| Bundle ∅ max. | 120mm |
| Bundle ∅ min. | 25mm |
| Length (L) | 838mm |
| Min.Tensile Strength | 5000N |
| Thickness (T) | 0.38mm |
| Width (W) | 16mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | non-burning (except coating) |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Stainless Steel (SS316), Polyester (SP) |
| Operating Temperature - °C | -80 °C to +538 °C |
| GTIN-13 / EAN | 5022660341755.0 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.389m |
| Packaging 1 - Qty | 50.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00123m³ |
| Packaging 1 - Weight (kg) | 1.325001kg |
| Packaging 1 - Width (m) | 0.09m |
