| TE | 132-00000 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to LHT370 Competences Cable holder Accessories |

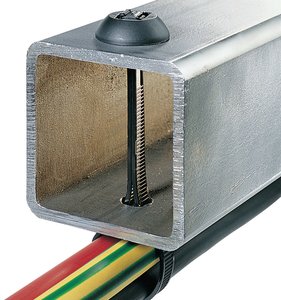

| 描述 | Both sides serrated cable tie BHT-Series with round head for larger bearing area BHT375 for centred position CT- and DE-Series with small squared head for restricted space areas Tensioning with application tool |
| Application Tool | MK6, MK21, EVO9, EVO9HT, MK9SST |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | LHT370-PA66-BK |
| Product Group | Cable Ties for single hole application (Chassis Tie) |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 106mm |
| Bundle ∅ min. | 14.0mm |
| Length (L) | 370mm |
| Min.Tensile Strength | 535N |
| Width (W) | 7.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 5022660309052.0 |
| Packaging 1 - Height (m) | 0.13m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01664m³ |
| Packaging 1 - Weight (kg) | 0.518223kg |
| Packaging 1 - Width (m) | 0.32m |
