| TE | 121-63570 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to KR6/35 Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |

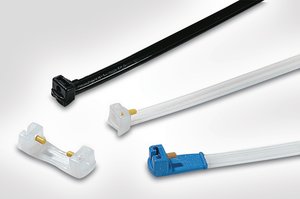

| 描述 | Cable tie without serration to avoid any damage to cables Strap is locked into place with a glass-fibre reinforced pin Very secure and vibration resistant fixing Available in various materials, colours and almost every length Cable ties from PA12 are highly resistant to chemicals, impact and UV light KR-ties up to 426 mm are made as one piece For assembly a special KR-tool is needed |
| Application Tool | KR6/8 |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Package Quantity per | pcs. |
| PART DESCRIPTION | KR6/35-PA66-BK |
| Product Family | KR-Series, 1-Piece |
| Product Group | Cable tie locked by glass fibre pin |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Tie Closure | fibreglass pin |
| Variant | No Serration |
| Bundle ∅ max. | 93.0mm |
| Bundle ∅ min. | 4.7mm |
| Length (L) | 360mm |
| Min.Tensile Strength | 490N |
| Width (W) | 6.1mm |
| Flammability | UL 94 V2 |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | IEC 62275:2006 |
| GTIN-13 / EAN | 4031026114132.0 |
| Packaging 1 - Qty | 50.0 |
| Packaging 1 - Weight (kg) | 0.1585kg |
