| TE | 121-11019 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to KR8/110 Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories Similar products |

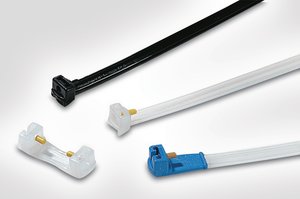

| 描述 | Cable tie without serration to avoid any damage to cables Strap is locked into place with a glass-fibre reinforced pin Very secure and vibration resistant fixing Lengths over 500 mm have an ultrasonic welded head For assembly a special KR-tool is needed Available in various materials and colours |
| Application Tool | KR6/8, KR8PNSE |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 50pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | KR8/110-PA66-NA |
| Product Family | KR-Series, ultrasonic welded |
| Product Group | Cable tie locked by glass fibre pin |
| Releasable Closure (Yes/No) | No |
| 颜色 | Natural (NA) |
| Tie Closure | fibreglass pin |
| Variant | No Serration |
| Bundle ∅ max. | 344mm |
| Length (L) | 1100mm |
| Min.Tensile Strength | 785N |
| Width (W) | 8.0mm |
| Flammability | UL 94 V2 |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 4031026113951.0 |
| Packaging 1 - Qty | 50.0 |
| Packaging 1 - Weight (kg) | 0.5500kg |
| Packaging 2 - Qty | 1.0 |
