| TE | 111-01378 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to MCTS150 Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories Similar products |
| 描述 | Total metal dispersion throughout the tie Can support quality assurance in the production of food stuffs, for example HACCP Blue colour for easy visual detection Greatly reduces risk of contamination Magnetic detectable (detection level depending on specific application and equipment) MCTS ties have very good corrosion resistance |
| Application Tool | MK3PNSP2, MK3SP, MK20, EVO7 |
| Colour | Mint Green (MGN) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | MCTS150-PA66MP+-GN |
| Product Family | MCTS-Series |
| Product Group | Cable ties for food industry, detectable, corrosion resistant |
| Releasable Closure (Yes/No) | No |

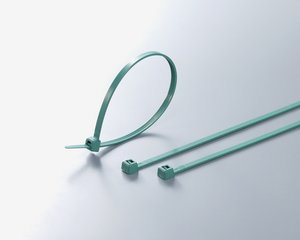

| Short Description | Metal Content Tie 153x3.5 mm, PA66MP+, mint green |
| 颜色 | Mint Green (MGN) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 36mm |
| Bundle ∅ min. | 5.0mm |
| Length (L) | 153mm |
| Min.Tensile Strength | 110N |
| Thickness (T) | 1.2mm |
| Width (W) | 3.5mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | not flame-retardant |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6, with metal particles (PA66MP+) |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 4944387961645.0 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 0.23m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0006m³ |
| Packaging 1 - Weight (kg) | 0.080001kg |
| Packaging 1 - Width (m) | 0.13m |
