| TE | 112-00403 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to LPH350 Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories Similar products |
| 描述 | High impact modifed cable ties are also available Good tensile strength with a single – or a double bridged head Outside serration allows for a smooth surface to the bundle Design protects against damage to cable insulation Low profile head for optimised use especially in restricted spaces Strap is threaded parallel through the low profile head |
| Application Tool | MK9P, MK9P w/ Upper air, MK10-SB, EVO9, EVO9HT |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | LPH350-PA66HIR(S)-BK |
| Product Family | LPH-Series |
| Product Group | Cable ties with low profile head |
| Releasable Closure (Yes/No) | No |

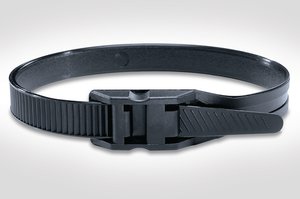

| Short Description | Cable Tie 355x9 mm, outside serrated, high impact modified, scan black |
| 颜色 | Black (BK) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 92.0mm |
| Bundle ∅ min. | 25.0mm |
| Length (L) | 355mm |
| Min.Tensile Strength | 480N |
| Width (W) | 9mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, scan black (PA66HIR(S)) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | IEC 60092 series |
| GTIN-13 / EAN | 5022660311451.0 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.52m |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0039m³ |
| Packaging 1 - Weight (kg) | 0.503001kg |
| Packaging 1 - Width (m) | 0.15m |
