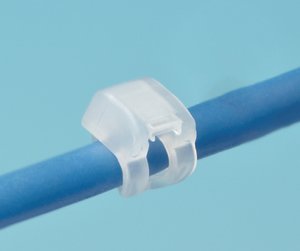

| TE | 112-00060 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to LPT50R Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Similar products |
| 描述 | Help bundle wires neatly to make wire harnesses with smaller diameters. Head structure that leaves little of the tail exposed after the cable tie is cut off. Head designed not to get caught on surrounding parts and wires. |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 1000pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | LPT50R-PA66-NA |
| Product Family | Low Head Tie |
| Product Group | Cable ties with low profile head |
| 颜色 | Natural (NA) |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 51.0mm |
| Bundle ∅ min. | 4.0mm |
| Length (L) | 194.6mm |
| Min.Tensile Strength | 225.0N |
| Width (W) | 4.8mm |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Packaging 1 - Weight (kg) | 1.5kg |
