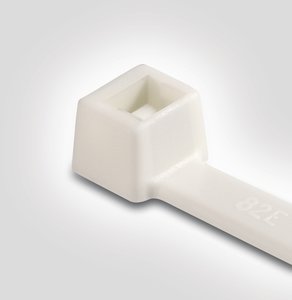

| TE | 111-00699 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T30R Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories Similar products |
| 描述 | White cable tie for higher fire-protection Conform to low smoke generation requirements (UL94 V0) Low evolution of toxic gases and corrosive acids in event of a fire PA66V0 cable ties are available in different sizes High safety rating due to low fire hazard |
| Application Tool | MK3PNSP2, MK3SP, EVOcut, MK20, EVO7 |
| Colour | White (WH) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T30R-PA66V0-WH |
| Product Family | T-Series in PA66V0 |
| Product Group | Cable Ties for higher fire-protection |
| Releasable Closure (Yes/No) | No |
| 颜色 | White (WH) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 36.0mm |
| Bundle ∅ min. | 1.0mm |
| Length (L) | 152mm |
| Min.Tensile Strength | 135N |
| Thickness (T) | 1.2mm |
| Width (W) | 3.5mm |
| Flammability | UL 94 V0 |
| Material | Polyamide 6.6 V0 (PA66V0) |
| Operating Temperature - °C | -40 °C to +105 °C |
| Specifications | ANSI/UL 1565, ANSI/UL 62275 |
| UL OCD link | Link |
| UL-File Number | E64962 |
| GTIN-13 / EAN | 4944387127553.0 |
