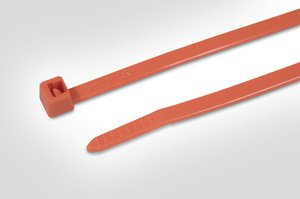

| TE | 111-01063 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications More Information Further information to T50L Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories |
| 描述 | Available in a wide range of materials and sizes High tensile strength with very low insertion force Only high quality plastic is used meeting recycling targets Inside serrated cable ties for a strong hold onto bundles Ergonomic bent tail offers quick and simple installation Easy application either manually or with an application tool |
| Application Tool | MK3PNSP2, EVOcut, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9 |
| Colour | Orange (OG) |
| Identification Plate Position | none |
| Pack Cont. | 200pcs. |
| PART DESCRIPTION | T50L-PA66-OG |
| Product Group | Cable Ties Polyamide 6.6 standard |
| Releasable Closure (Yes/No) | No |
| 颜色 | Orange (OG) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 110mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 390.0mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.4mm |
| Width (W) | 4.6mm |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
