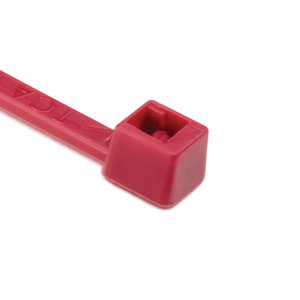

| TE | 111-15421 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T150L Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories |
| 描述 | Available in a wide range of materials and sizes High tensile strength with very low insertion force Only high quality plastic is used meeting recycling targets Inside serrated cable ties for a strong hold onto bundles Ergonomic bent tail offers quick and simple installation Easy application either manually or with an application tool |
| Application Tool | EVOcut, MK9P, MK9P w/ Upper air, EVO7, EVO7SP, EVO9, EVO9HT |
| Colour | Red (RD) |
| Identification Plate Position | none |
| Pack Cont. | 25pcs. |
| Package Quantity per | box |
| PART DESCRIPTION | T150L-PA66-RD |
| Product Group | Cable Ties Polyamide 6.6 standard |
| Releasable Closure (Yes/No) | No |
| 颜色 | Red (RD) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 245.0mm |
| Bundle ∅ min. | 8.0mm |
| Length (L) | 820.0mm |
| Min.Tensile Strength | 780N |
| Thickness (T) | 1.9mm |
| Width (W) | 8.9mm |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| GTIN-13 / EAN | 4031026680569.0 |
