| TE | 111-01813 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T18R Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |
| 描述 | Available in a wide range of materials and sizes High tensile strength with very low insertion force Only high quality plastic is used meeting recycling targets Inside serrated cable ties for a strong hold onto bundles Ergonomic bent tail offers quick and simple installation Easy application either manually or with an application tool |
| Application Tool | MK3PNSP2, EVOcut, MK20, EVO7 |
| Colour | Yellow (YE) |
| Identification Plate Position | none |
| Pack Cont. | 1000pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T18R-PA66-YE |
| Product Family | T-Series in PA66 coloured |
| Product Group | Cable ties polyamide 6.6 standard |
| Releasable Closure (Yes/No) | No |

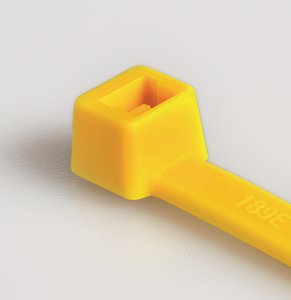

| Short Description | Cable Tie 100x2.5 yellow |
| 颜色 | Yellow (YE) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 22.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 101.6mm |
| Min.Tensile Strength | 80N |
| Thickness (T) | 1.0mm |
| Width (W) | 2.5mm |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C, (+105 °C, 500 h) |
| Specifications | IEC 60092 series, IEC 62275:2006 |
| GTIN-13 / EAN | 5022660320071.0 |
| Packaging 1 - Weight (kg) | 0.28kg |
