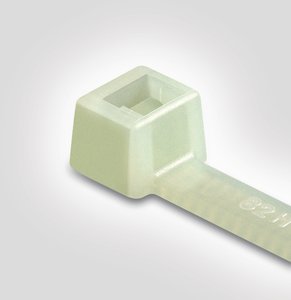

| TE | 111-03539 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T30LL Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |
| 描述 | Available in a wide range of materials and sizes High tensile strength with very low insertion force Only high quality plastic is used meeting recycling targets Inside serrated cable ties for a strong hold onto bundles Ergonomic bent tail offers quick and simple installation Easy application either manually or with an application tool |
| Application Tool | MK3PNSP2, EVOcut, MK20, EVO7 |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | T30LL-PA66-NA |
| Product Family | T-Series in PA66 natural |
| Product Group | Cable Ties Polyamide 6.6 standard |
| Releasable Closure (Yes/No) | No |
| 颜色 | Natural (NA) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 80.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 290mm |
| Min.Tensile Strength | 135N |
| Thickness (T) | 1.2mm |
| Width (W) | 3.5mm |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C, (+105 °C, 500 h) |
| Specifications | ANSI/UL 62275, ANSI/UL 746B |
| UL OCD link | Link |
| UL-File Number | E85319 |
| GTIN-13 / EAN | 4031026105017.0 |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Weight (kg) | 0.1390kg |
