| TE | 114-03379 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T30R Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories Similar products |

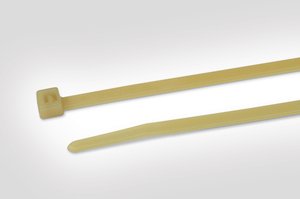

| 描述 | Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h) Available in different sizes to cover various bundle diameters Low smoke generation in the event of a fire PA46 is a moisture sensitive material Inside serrated cable tie offers strong hold around bundles Easy application either manually or with an application tool Operating temperature (long-term) up to +130 °C |
| Application Tool | MK3PNSP2, MK3SP, EVOcut, MK20, EVO7 |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | T30R-PA46-NA |
| Product Family | T-Series in PA46 |
| Product Group | Cable Ties for temperatures up to + 195 °C (500 h) in Polyamide 4.6 |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 150x3.5 PA46-natural |
| 颜色 | Natural (NA) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 150mm |
| Min.Tensile Strength | 135N |
| Thickness (T) | 1.1mm |
| Width (W) | 3.5mm |
| Flammability | UL 94 V2 |
| Material | Polyamide 4.6 (PA46) |
| Nato number | 5975-12-360-3578 |
| Operating Temperature - °C | -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h) |
| GTIN-13 / EAN | 5022660021237.0 |
| Packaging 1 - Qty | 100.0 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 0.0700kg |
