| TE | 111-00483 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications More Information Further information to T30R Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories |
| 描述 | Available in a wide range of materials and sizes High tensile strength with very low insertion force Only high quality plastic is used meeting recycling targets Inside serrated cable ties for a strong hold onto bundles Ergonomic bent tail offers quick and simple installation Easy application either manually or with an application tool |
| Application Tool | MK3PNSP2, MK3SP, EVOcut, MK20, EVO7 |
| Colour | Dark Green (DKGN) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T30R-PA66-GN |
| Product Group | Cable Ties Polyamide 6.6 standard |
| Releasable Closure (Yes/No) | No |

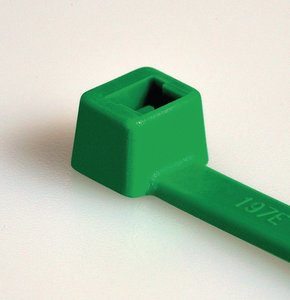

| Short Description | Cable Tie 150x3.5 mm dark green |
| 颜色 | Dark Green (DKGN) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 1.5mm |
| Length (L) | 150mm |
| Min.Tensile Strength | 135N |
| Thickness (T) | 1.1mm |
| Width (W) | 3.5mm |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | CAN/CSA-C22.2 no. 62275, IEC 60092 series |
| UL OCD link | Link |
| UL-File Number | E64963 |
