| TE | 117-05302 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T50IDH Competences Cable Ties and Fixings Cable clips for edges: fasten cables without drilling Accessories Similar products |
| 描述 | Possibility to separate bundles with only one cable tie Cable tie with two heads creating an inside and outside serrated loop Available in a wide range of materials Bundles can be of different diameter Maximum bundle diameter is a maximum combined bundle Easy application either manually or with a processing tool |
| Application Tool | MK3PNSP2, MK7P, MK20, EVO7 |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50IDH-PA66-NA |
| Product Family | DH-Series |
| Product Group | Cable ties for parallel routing |
| Releasable Closure (Yes/No) | No |

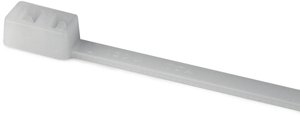

| Short Description | 12", double head cable tie, natural, 100/bag |
| 颜色 | Natural (NA) |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle ∅ max. | 76.2mm |
| Bundle ∅ min. | 1.6mm |
| Length (L) | 305.0mm |
| Min.Tensile Strength | 225.0N |
| Thickness (T) | 1.4mm |
| Width (W) | 4.7mm |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Material | Polyamide 6.6 (PA66) |
| Nato number | 5975-12-391-7805 |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications | UL-ZODZ2.E64139 |
| UL-File Number | E64139 |
| GTIN-13 / EAN | 5016371005969.0 |
