| TE | 117-00023 |
| 分类 | 扎带 |
| 品牌 | 海尔曼太通全球(HellermannTyton) |
| 类型 | Features Certifications & Approvals Application More products in this product group Base Data Product Dimensions Material and Specifications Logistics and Packaging More Information Further information to T120RDH Competences Cable clips for edges: fasten cables without drilling Cable Ties and Fixings Accessories Similar products |

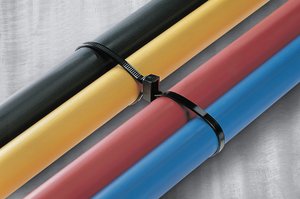

| 描述 | Possibility to separate bundles with only one cable tie Cable tie with two heads creating an inside and outside serrated loop Available in a wide range of materials Bundles can be of different diameter Maximum bundle diameter is a maximum combined bundle Easy application either manually or with a processing tool |
| Application Tool | MK6, MK9P, MK21, EVO9, EVO9HT, MK9SST |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 50pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T120RDH-PA66HS-BK |
| Product Family | DH-Series |
| Product Group | Cable ties for parallel routing |
| Releasable Closure (Yes/No) | No |
| 颜色 | Black (BK) |
| Variant | Inside Serrated |
| Bundle ∅ max. | 101.6mm |
| Bundle ∅ min. | 4.6mm |
| Length (L) | 398.0mm |
| Min.Tensile Strength | 535.0N |
| Width (W) | 7.6mm |
| Flammability | UL 94 V2 |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +125 °C |
| GTIN-13 / EAN | 4031026539003.0 |
